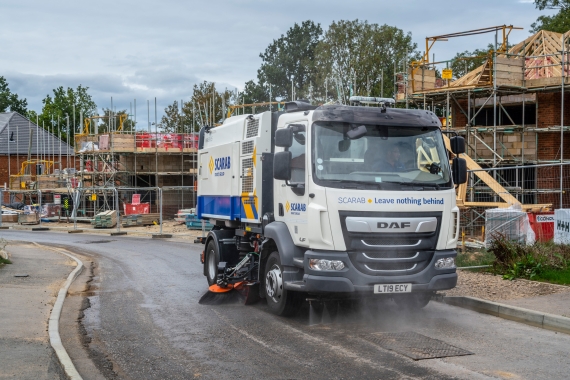

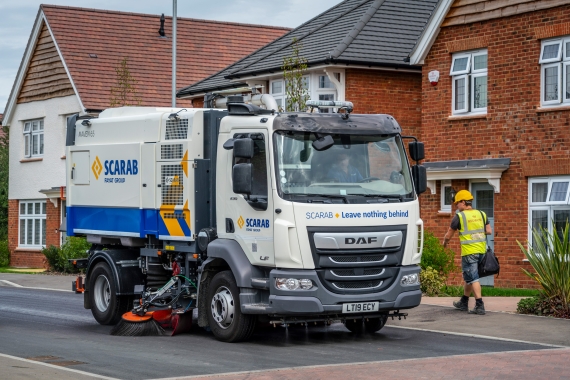

Maven 65 truck-mounted sweeper.

Maven 65

The next level of twin-engine sweeping performance.

New to the Scarab range in 2021, the Maven 65 is a heavy-duty twin-engine sweeper capable of being mounted onto virtually any internationally available 12 to 18-tonne GVW truck chassis. Incorporating all the benefits associated with Scarab equipment, the powerful performance and a carefully selected range of options available with this machine ensure it can meet the demands of all municipal and heavy-duty contractor applications.

Magnum 82 truck-mounted sweeper.

Latest Technology

Guided by extensive customer feedback, the Maven 65 replaces the outgoing M65T as Scarab's leading twin-engine solution. The Maven 65 was developed to offer significant improvements across the machine including 20% improved suction performance via the standard inclusion of Scarab's high-speed fan system, increased fuel capacity to 200 litres allowing longer on-station time, reduced fuel consumption by 20%, and a range of enhanced operational and maintenance features.

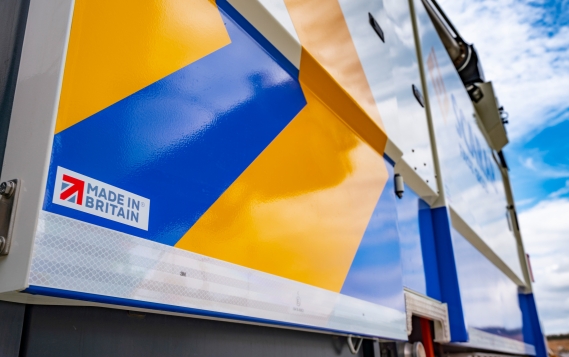

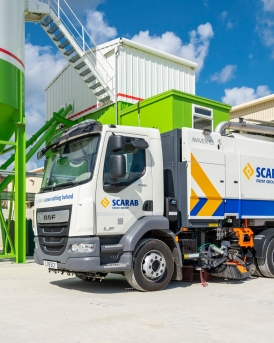

Maven 65 truck-mounted sweeper.

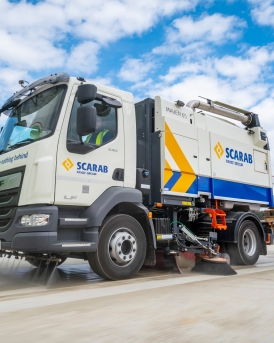

Maven 65 truck-mounted sweeper.

TWIN ENGINE CONFIGURATION

The Maven 65 has been designed for operators who prefer a twin-engine configuration but who also wish to benefit from the very best in road sweeper technology.

All the qualities that make SCARAB the street sweeper of choice for so many operators are incorporated in the Maven 65. The combination of a powerful, yet economical Stage V Duetz engine, streamlined airflow path and efficient High-Speed Fan configuration has led to a 20% overall reduction in fuel consumption.

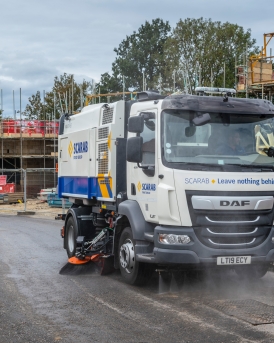

Maven 65 truck-mounted sweeper.

TRUSTED WORLDWIDE

The Maven 65 can be supplied as a completely built machine from the factory or for specific markets can be supplied as an Export Skid Unit for local mounting in the country of destination.

SCARAB's export skid units are designed to allow operators from around the world to experience our cutting-edge technology. The Maven 65 provides a familiar transmission and power-delivery system for users whose operational needs call for auxilliary engine power, while being able to rely on our renowned sweeping performance.

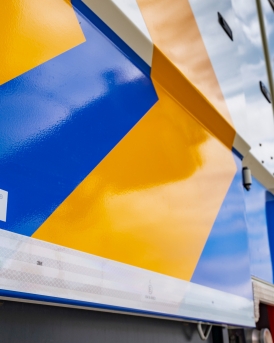

Maven 65.

Quiet, Efficient Power

The quiet, low-emission engine was selected for its ability to provide ample power at low rpm with reduced fuel consumption and industry-leading service intervals - all without the need for AdBlue. Its position, between hopper and cab, makes servicing easy. All engine filters and main service points can be reached from the large service platform. The simple fluid power system and Scarab’s industry-leading CANbus control reduce ownership costs and maximize reliability.

Suction Performance

A stainless-steel centrifugal impellor positioned to produce an efficient airflow path for high suction performance and reduced power consumption. The auxiliary engine is infinitely variable from 1200 - 1550rpm, providing more than enough power for municipal or heavy-duty work. A 1700rpm fan boost is available for tougher environments, ensuring a clean sweep every time.

Robust Hopper

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 stainless steel. The hopper is shot blasted, a two-pack epoxy primer is applied and a hard-wearing topcoat provides a superior finish. The particulate screening is hinged and swings down to provide access to the operator for cleaning.

Sweeping Capability

The Maven 65 is able to easily switch between single and dual sweeping functions thanks to the intuitive CANbus control system fitted to every Scarab machine. When the suction nozzle, side brush and widesweep functions are in operation the Maven 65 can sweep at a 2345mm width. However, the brushes can reach an impressive 3600mm span when simultaneously dual sweeping.

Intuitive Control

The intuitive CANbus controls and a colour monitor provide comprehensive feedback to both the driver and service team. The clear display indicates the sweeping configuration and vehicle condition - while also highlighting warnings and service reminders. Our real-time monitoring and data logging provide valuable assistance in troubleshooting technical problems and help keep your machine running at its most efficient.

SCARAB's CANbus control system.

TRUSTED WORLDWIDE
For more information about machine availability in your region, please contact your local SCARAB dealer.

Dealer Network

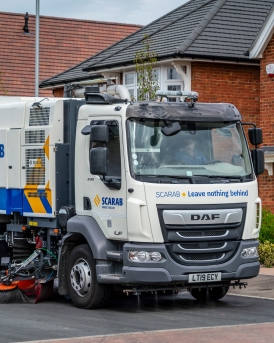

Maven 65 truck-mounted sweeper.

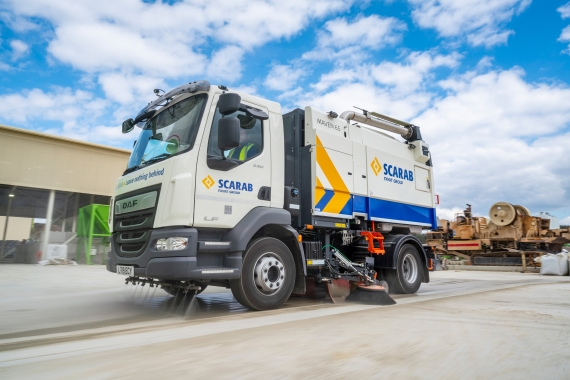

Maven 65 truck-mounted sweeper.
Maven 65 truck-mounted sweeper.
Maven 65 truck-mounted sweeper.
Maven 65 truck-mounted sweeper.
