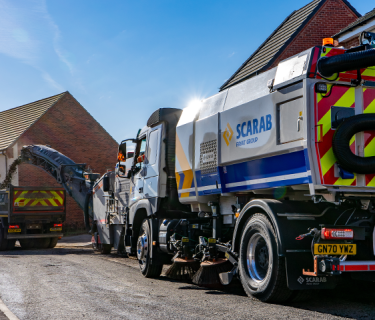

Magnum 82

Magnum 82

The pinnacle of sweeping performance and design.

With its class-leading suction, high-specification and rugged build, the Magnum 82 is suited for all civil works and specialist applications including airport aprons, milling work and high-pressure surface cleaning.

Scarab’s innovative single-engine system and intuitive CANbus control and diagnostic system make the Magnum 82 one of our most versatile machines with exceptional performance, excellent endurance and a host of options to suit specialist requirements.

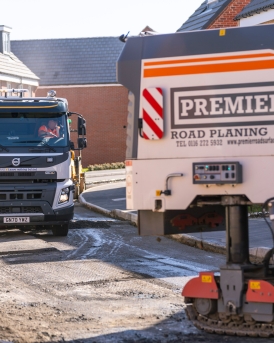

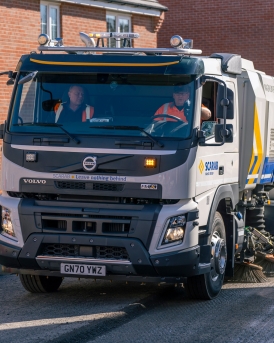

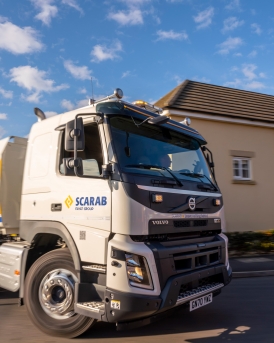

Magnum 82 truck-mounted sweeper.

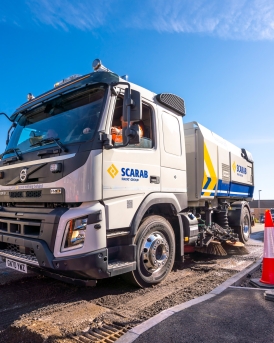

Magnum 82 truck-mounted sweeper.

SINGLE ENGINE, SINGLE EMISSION

Scarab can justifiably claim to be the pioneer of the truck-mounted sweeper powered from a single-engine.

Operating the whole machine from the engine of the truck chassis provides many advantages, including reduced fuel consumption, decreased noise and engine pollution, less weight, greater payload and reduced maintenance.

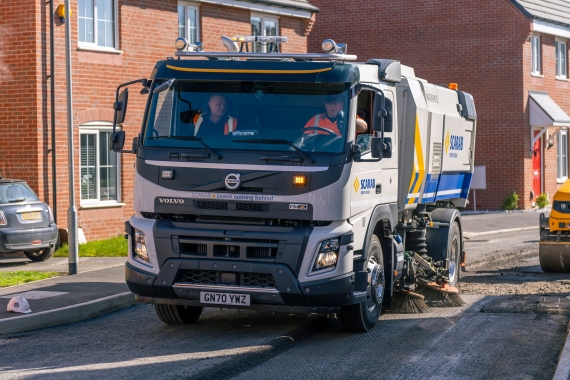

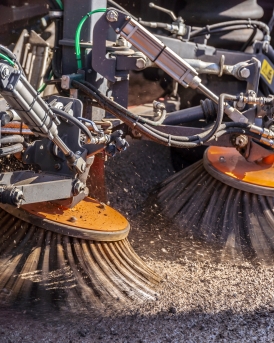

Magnum 82 truck-mounted sweeper.

FLEXIBLE, TRUCK-MOUNTED SOLUTIONS

The Magnum 82 can be fitted to a wide choice of high performance 18-19+ tonne chassis including those from DAF, Iveco, MAN, Mercedes, Volvo, Renault and more.

For details on suitable chassis specifications, and to discuss your needs with an expert, please contact your local distributor by visiting our Dealer Network.

Magnum 82

Hydrostatic Drive

The Scarab designed hydrostatic gearbox is installed in the chassis driveline and allows the sweeping components to be powered directly from the chassis engine. It also offers a range of operator benefits with its simple joystick control for Forward and Reverse, allowing single-pedal control which reduces fatigue and enables the driver to fully concentrate on sweeping.

Suction Performance

SCARAB's high speed roof-mounted impellor is positioned to produce a short, efficient airflow path for high suction performance and reduced power consumption.

Robust Hopper

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 stainless steel. The hopper is shot blasted, a two-pack epoxy primer is applied and a hard-wearing topcoat provides a superior finish. The particulate screening is hinged and swings down to provide access to the operator for cleaning.

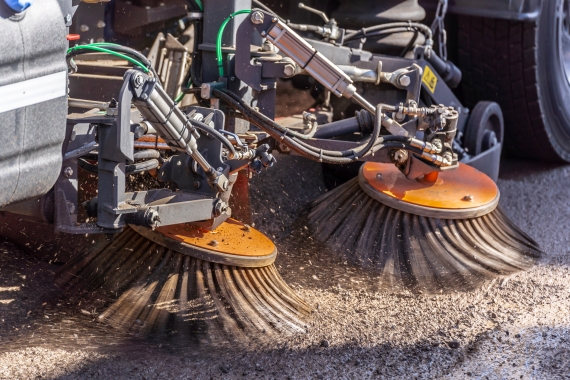

Sweeping Capability

The Magnum 82 is available in both single and optional dual-sweep configuration. When the suction nozzle, side brush and widesweep functions are in operation the Magnum 82 can sweep at a 2465mm width. However, the brushes can reach an impressive 3400mm span when simultaneously dual sweeping, while the Side Sliding Auxiliary Brush and Dual Sweep Option reaches 3900mm.

Intuitive Control

The intuitive CANbus controls and a colour monitor provide comprehensive feedback to both the driver and service team. The clear display indicates the sweeping configuration and vehicle condition - while also highlighting warnings and service reminders. Our real-time monitoring and data logging provide valuable assistance in troubleshooting technical problems and help keep your machine running at its most efficient.

SCARAB's CANbus control system.

TRUSTED WORLDWIDE
For more information about machine availability in your region, please contact your local SCARAB dealer.

DEALER NETWORK

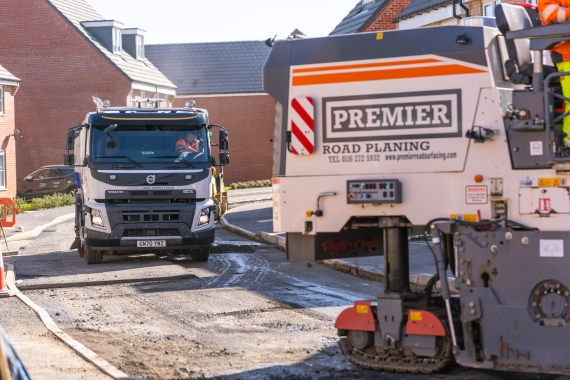

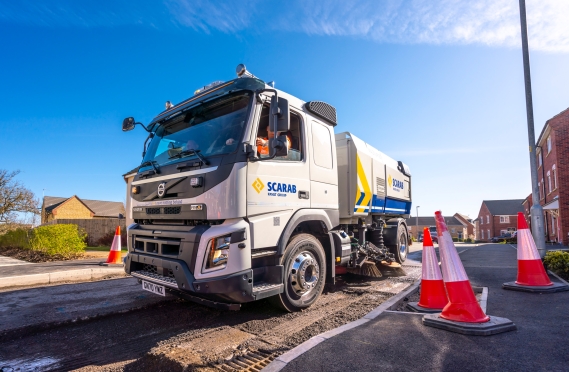

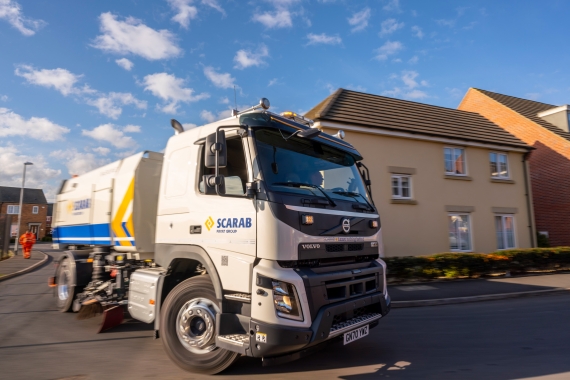

Magnum 82 truck-mounted sweeper.
Magnum 82 truck-mounted sweeper.
Magnum 82 truck-mounted sweeper.
Magnum 82 truck-mounted sweeper.
Magnum 82 truck-mounted sweeper.
