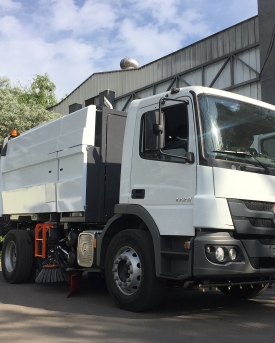

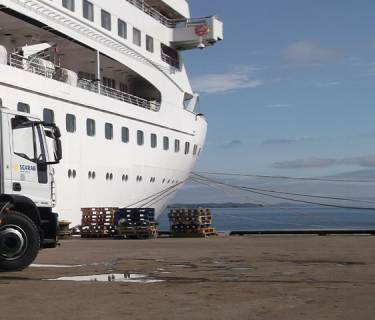

M6 truck-mounted sweeper.

M6

Robust, reliable and ready for the world's most challenging environments.

The M6 incorporates all the essential features of a Scarab heavy-duty road sweeper and has been purposely developed to be packaged and shipped as safely and economically as possible to destinations around the world. Upon delivery, it can be easily mounted on the local 15-18 tonne GVW truck chassis of your choice.

The rugged construction, easy maintenance schedule and carefully selected range of options ensure the M6 delivers outstanding performance in municipal and heavy-duty contractor applications.

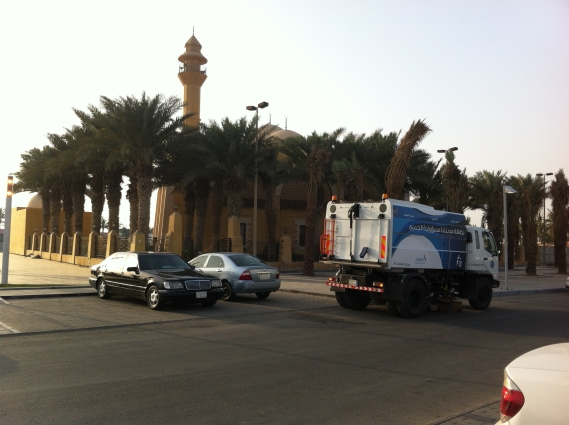

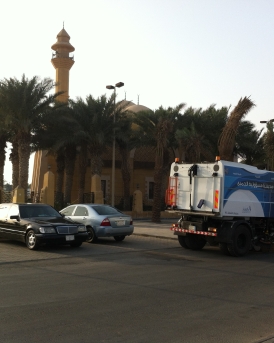

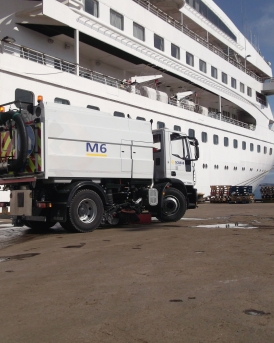

M6 truck-mounted sweeper.

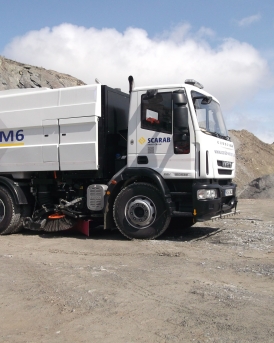

M6 truck-mounted sweeper.

TWIN ENGINE CONFIGURATION

The M6 has been designed for operators who prefer a twin-engine configuration but who also wish to benefit from the very best in road sweeper technology. All the qualities that make Scarab the street sweeper of choice for so many operators are incorporated in the M6.

The simple fluid power system and Scarab’s industry-leading CANbus control reduce ownership costs and maximize reliability.

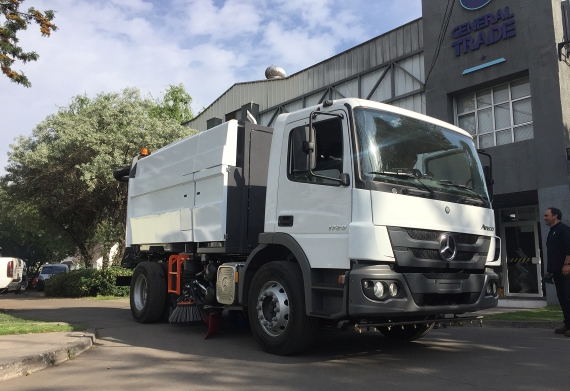

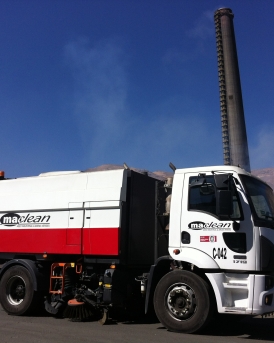

M6 truck-mounted sweeper.

TRUSTED WORLDWIDE

Thanks to our comprehensive network of trusted Dealers worldwide, the M6 can be distributed as an export skid unit to even the most remote locations.

Our skid units are carefully packaged to contain all of the components required before being delivered directly to you local distributor, here the sweeper is mounted to the chassis of your choice.

Magnum 82

Trusted Power

The quiet, low-emission Cummins QSB 3.3 ROW engine was selected for its ability to provide ample power at low RPM. Its position, between hopper and cab, affords ease of access for servicing. All engine filters and main service points can be reached from the large working platform or by additionally removing the forward easy-access panel.

Suction Performance

A stainless steel 800mm roof mounted impeller positioned to produce an efficient airflow path for high suction performance and reduced power consumption. Particulate screening via a hinged, stainless steel mesh filter is pleated to give maximum surface area and reduce blocking - it also swings down for ease of cleaning. Furthermore, the fan chamber is also easily accessed for cleaning.

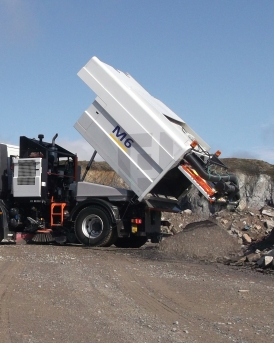

Robust Hopper

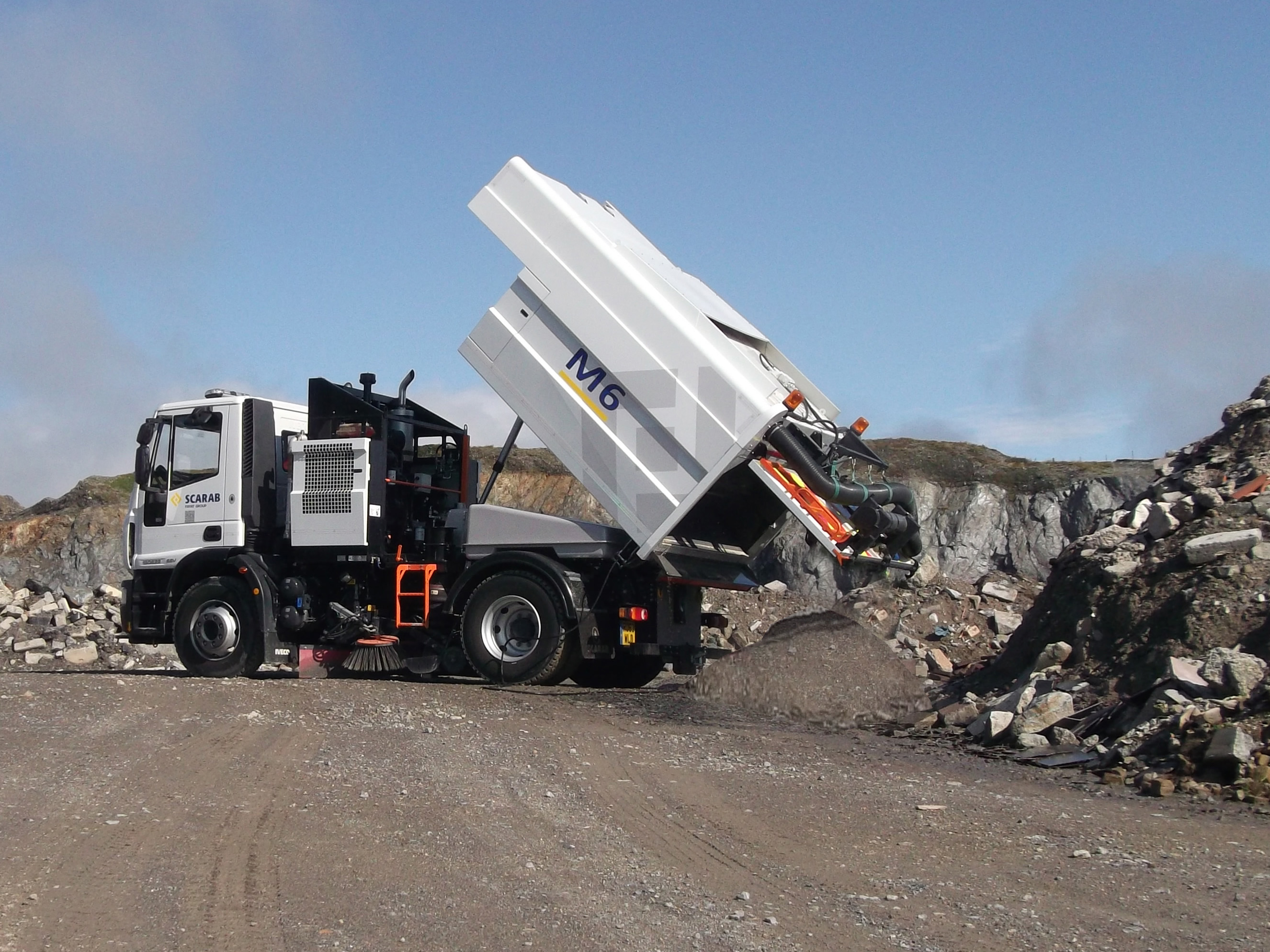

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 stainless steel. The hopper is shot blasted, a two-pack epoxy primer is applied and a hard-wearing topcoat provides a superior finish. The particulate screening is hinged and swings down to provide access to the operator for cleaning.

Sweeping Capability

The M6 is available in both single and optional dual-sweep configuration. When the suction nozzle, side brush and widesweep functions are in operation the M6 can sweep at a 2505mm width. However, the brushes can reach an impressive 3200mm span when simultaneously dual sweeping.

Intuitive Control

The intuitive CANbus controls and a colour monitor provide comprehensive feedback to both the driver and service team. The clear display indicates the sweeping configuration and vehicle condition - while also highlighting warnings and service reminders. Our real-time monitoring and data logging provide valuable assistance in troubleshooting technical problems and help keep your machine running at its most efficient.

SCARAB's CANbus control system.

TRUSTED WORLDWIDE
For more information about machine availability in your region, please contact your local SCARAB dealer.

DEALER NETWORK

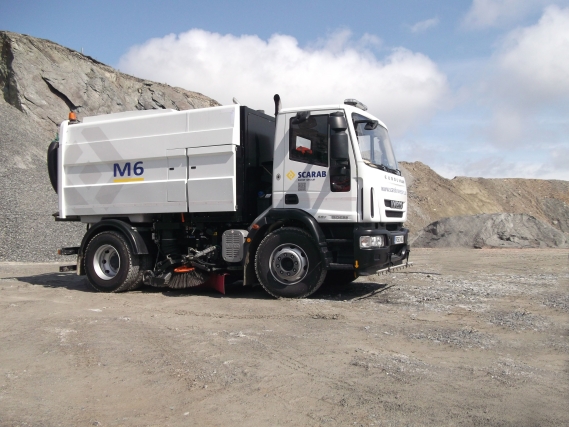

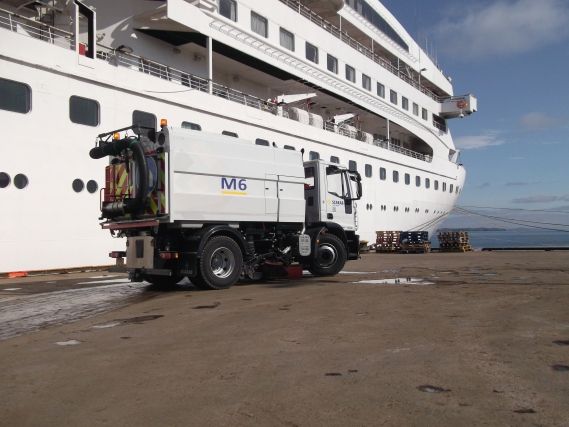

M6 truck-mounted sweeper.

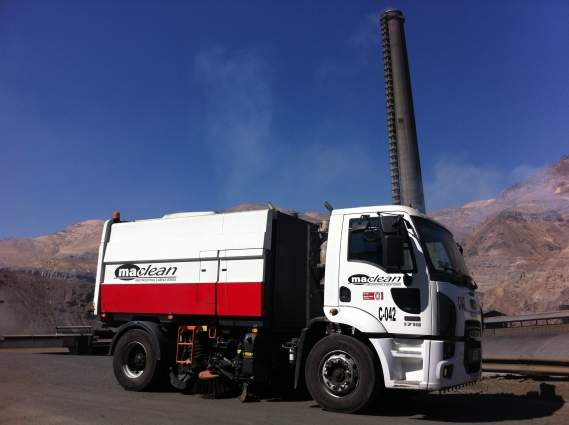

M6 truck-mounted sweeper.
